10 Ton Electric EOT Foundry Crane 60m Box Type Single Beam Remote Control

Name: 10 Ton Electric EOT Foundry Crane 60m Box Type Single Beam Remote Control
Brand: KUANGYUAN
Price: 12000 USD

China 10 Ton Electric EOT Foundry Crane 60m Box Type Single Beam Remote Control wholesale

Brand Name : KUANGYUAN

Model Number : LDY

Certification : CE ISO GOST

Place of Origin : Henan,China

MOQ : 1Set

Price : USD 12000

Payment Terms : L/C, T/T

Supply Ability : 10000 Sets per Year

Delivery Time : 30 work days

Packaging Details : Electrical and other parts packed by high quality plywood crate,Beams packed by plastic woven cloth.

Name : Metallurgy Foundry Crane

Lifting Capacity : 10T

Span : 9/12/15/18/20m

Lifting Height : 60m

Work Duty : A6

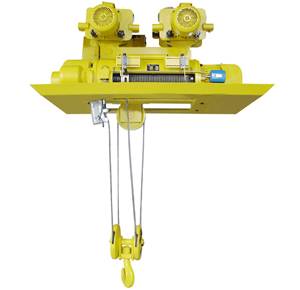

Lifting mechanism : Metallurgy Hoist

Warranty : 1 Year

Power Source : 3 Phase 380V 50hz/Custmized

Marketing Type : New

Color : Custmized

Contact Now

Selection Guide:

LDY-type metallurgical electric single girder crane is a space transport tool used in conjunction with YHII electric hoist, the main role is to intermittent, periodic work mode, through the lifting hook or other pick-up devices in a timely and rapid manner to complete the metallurgical production process required to lift the transport of heavy displacement, is an important tool and equipment to improve labour productivity in modern industrial enterprises in metallurgical and foundry sites.

10 Ton Electric EOT Foundry Crane 60m Box Type Single Beam Remote Control

PRODUCTS DESCRIPTION

10Ton box type single beam remote control electric EOT foundry crane for sale

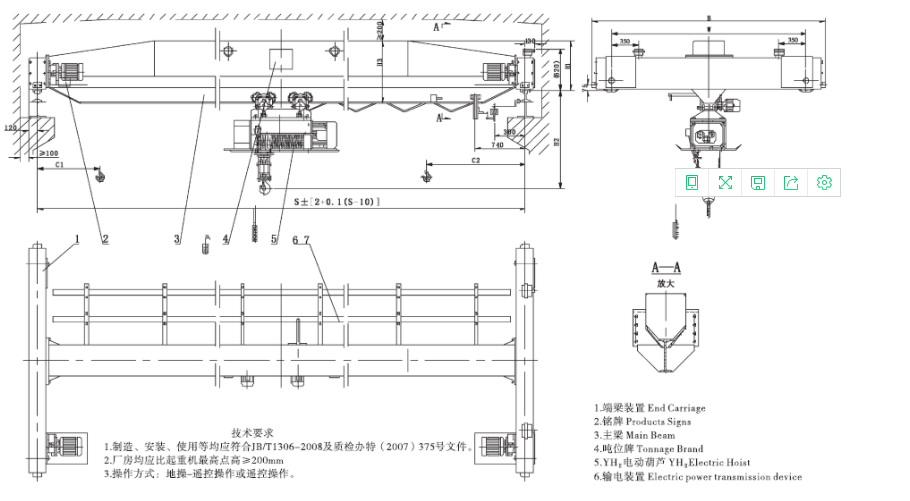

The structure of the single girder metallurgical crane consists of three main parts: the bridge, the metallurgical electric hoist and the electrical system. The bridge is used to support and move the load longitudinally and consists of a metal structure and a running mechanism. The metal structure includes the main beam, the end beam and the main and end beam connection. The running mechanism consists of four parts: drive unit, transmission unit, brake unit and wheel set. The electric metallurgical hoist carries the lifting and lateral movement loads. The electrical system consists of the main circuit and the control circuit.Contact us for more LDY details.

FEATURES AT A GLANCE

1,Strong box type, one whole shape main beam welded by robot machine, very strong and beautiful.
 2, Sand blast for the whole crane steel structure, to make sure the paint is very strong.
 3, Six action direction movement, to get enough working area.
 4, Anti high temperature
 5, Full safety system as follows:
 Weight overload protection
 Emergency stop system
 Over current protection
 Short-circuit protection
 Phase sequence protection
 Zero position protection,Voltage loss protection
 Limit switch and stopper for crane long traveling and cross traveling
 Overhigh lift and overlow lift limit switch

PRODUCT CONFIGURATION

1). Wheels, wire rope drum, gears, couplings are processed by CNC machine center, TOP quality control;
 2). Heavy duty slip ring motor, or Sq.cage motor with VVVF, IP54 or IP44, insulation class F or H, soft starting and smooth
 running.
 3). Siemens main electric parts are used for durable and safe operation

Main GirderStructure: Welding structure of steel plate and I-steel
Technology: One-off forming U shaped groove.

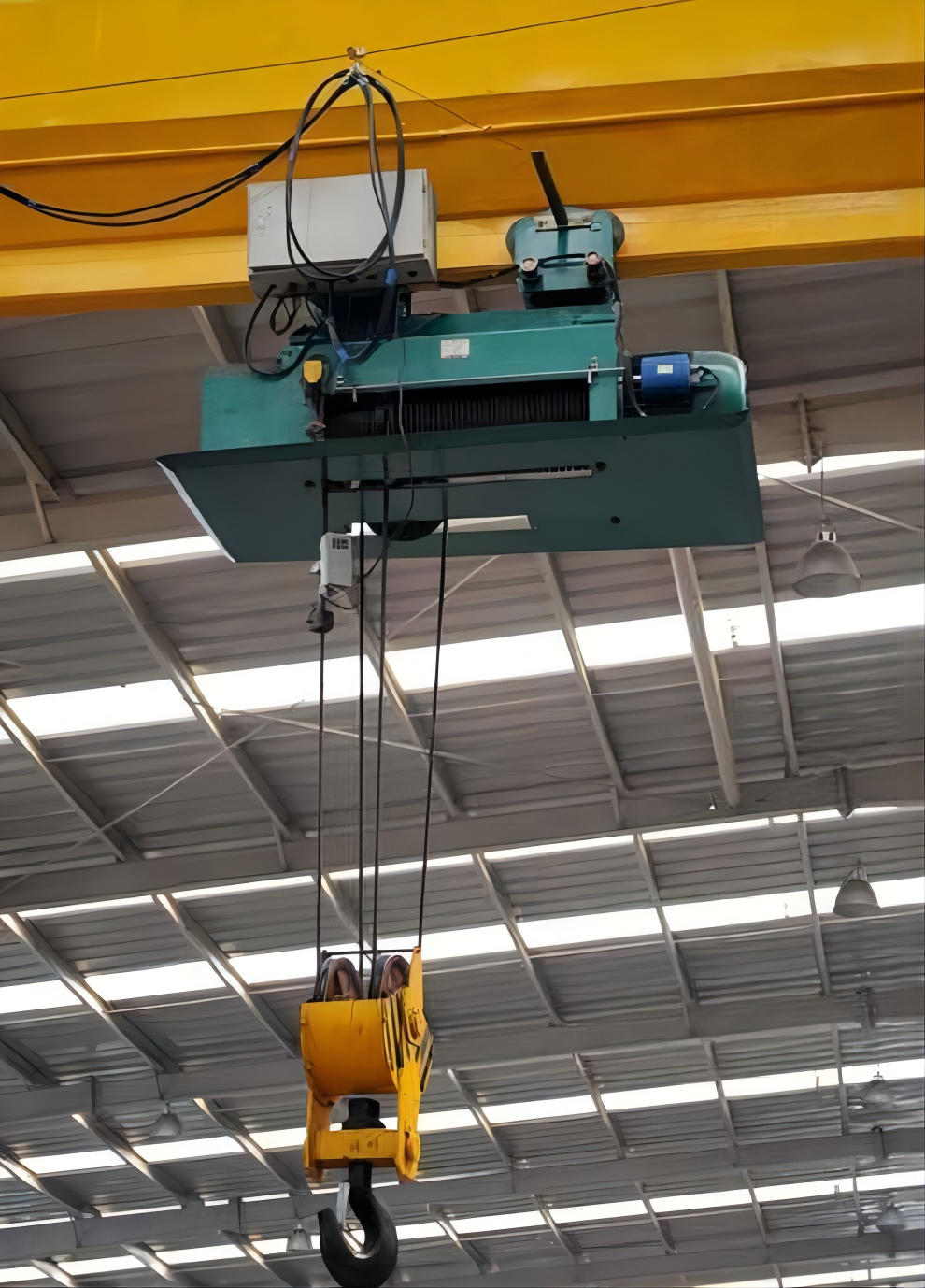

Electric HoistModel: CD, MD Capacity: 2~10t Lifting height: >3m Usage: Workshop, mines, habour etc.

End GirderThe end girder is connected with the main girder by dolts and nuts for easy transportation and installtion.

Hook

Capacity: 2~10t Type: Single hook, double hook Material: forging
 Usage: Lifting various objects

Wireless Remote Control

Model: F21 F23 F24 Speed: Single speed, double speed. VFD control
Usage: For overhead crane, gantry crane, electric hoist etc.

Wheels

Process: Casting, rough machining, QT, finish machiningMaterial: forging
Usage: Crane Travelling

PRODUCT SPECIFICATIONS

Safety device:
Weight overload protection device.
Top quality long time bearing polyurethane materials buffer.
Lifting limit switch and traveling limit switch.
Emergency stop system.
Zero voltage protection.
Phases protection device and so on.

Click to customize your parameters!

Capacity	10ton
Span	9/12/15/18/20m
Lifting speed	8/7
Traveling speed	20/30
Usage	Normal workshop, warehouse
control	Pendant control, remote control
Lifting tool	Electric hoist

COMPANY PROFILE

CUSTOMER CASE

Bridge Cranes For Construction Of Pakistan Railway

Smart Coke Tank Crane (Overcome technical difficulties such as high temperature,
red coke heat radiation and flame baking)

Dust-free Workshop Bridge Crane

Unmanned grab crane

FAQ

A: Can you provide custom service?
 B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.

 A: Are there any professional technicians to assist our installation?
 B: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.

 A: Whether or not you can offer the matched spare parts?
 B: Yes, as a crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels, grabs, hooks, rails, travel beams, enclosed bus bar, etc.

 A: How can you ensure the quality?
 B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are also warmly
 welcomed to our factory to make the inspections.
