200T Overhead Travelling Foundry Crane Heavy Duty Electric For Steel Mill

Name: 200T Overhead Travelling Foundry Crane Heavy Duty Electric For Steel Mill
Brand: KUANGYUAN
Price: 320000 USD

China 200T Overhead Travelling Foundry Crane Heavy Duty Electric For Steel Mill wholesale

Brand Name : KUANGYUAN

Model Number : YZS

Certification : ISO CE GOST

Place of Origin : Henan,China

MOQ : 1Set

Price : USD 320000-335000

Payment Terms : L/C, T/T

Supply Ability : 5000 sets per year

Delivery Time : 55~65 work days

Packaging Details : 1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation. 3. If the size are suitable for co

product name : Electric overhead travelling foundry crane for steel mill

girder type : four girder

working class : A7

lifting capacity : 180/50T, 200/50T,225/65T, 240/80T

main lifting height : 25~32m

aux.lifting height : 26~34m

main lifting speed : 6~11m/min

aux.lifting speed : 9.6~11m/min

power source : 380~420V 50Hz

control method : Cabin Control

Contact Now

PRODUCT OVERVIEW

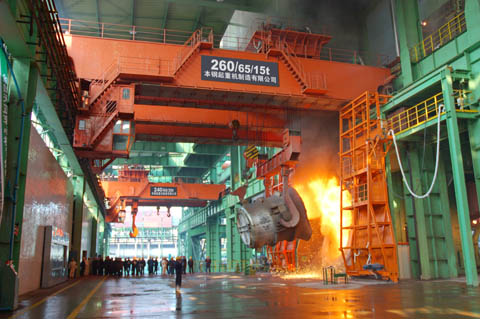

Heavy duty 200T Electric overhead travelling foundry crane for steel mill

Foundry crane is one of the main equipment in the continuous casting process of steel making. It is mainly used for mixing molten iron in the converter charging span to the converter, hoisting the molten steel to the refining furnace in the refining span or hoisting the molten steel in the molten steel span to the continuous casting turntable.
The overall structure of the foundry crane can be divided into: double-beam double-track, four-beam four-track, four-beam six-track and so on. The double-beam double-rail and four-beam four-rail forms are generally used for medium and large tonnage casting cranes, and the four-beam six-rail double
 trolley form is generally used for extra-large tonnage casting cranes.

Foundry crane is one of the leading products produced by our company. The casting cranes designed and manufactured by our company are advanced in technology, novel in structure, safe and reliable, economical and durable, and easy to maintain.

200T Overhead Travelling Foundry Crane Heavy Duty Electric For Steel Mill

FEATURES AT A GLANCE

Working conditions:

Working tempreture:-10~+60°C,
Work class:A7,
Power Source:3ph,380V,50HZ or other under customer requirement.
 Safety feature:
Overload protection in the event of overload, the hoist unit switches off and only the lowering motion is possible
Long and cross travel limited by means of preliminary and final limit switches or Wireless anti-collision device
Anti-falling protection for the Three-in-One electric motor of trolley and crane prevents from accidental falling
Safety hook latch used for avoiding the lifted material out off from the hook
Voltage lower protection system

Main features:

1.Very stable because of two lifting point on hanging beam of ladle hook through wire-rope pulley.
 2.Very very safety to lift because every one hanging beam pulley have two pc-s of wire-rope to avoid the risk happened once one pc of wire-rope damaged.
 3.Anti high temperature.
 4.Capacity is 125/32 tons and up.
 5.Two sets of brake for each lifting point and 4 sets of brake for the main lift.
 6, Emergency stop system
 7, Over current Protection
 8, Short-circuit Protection
 9, Phase sequence protection.
 10, High protection level IP 54 , IP 55.
 11, Zero position protection.
 12, Voltage loss protection.
 13, Current overload protection.
 14, Two carts for two lift, main lift cart is up, aux lift cart is below, to finish the heavy duty working, and could aux hook
 could be on left and right of main hook.

PRODUCT SPECIFICATIONS

Sketch

Standard parameters

lifting capacity/t		180/50	200/50	225/65	240/80
working class		A7
span(S)/m		28.5	28	27	22
lifting height/m	main hook	27	26	32	25
lifting height/m	aux.hook	29	26	34	27
speed	main hook	7.5	6	11	7
	aux.hook	10	10	11	9.6
	main trolley	40	41	41	35
	aux.trolley	38	38	39.5	38
	crane	80	78	84	80
max.wheel load/KN		525	530	550	545
steel track recommended		QU120
power source		380V 50Hz 3-Ph AC

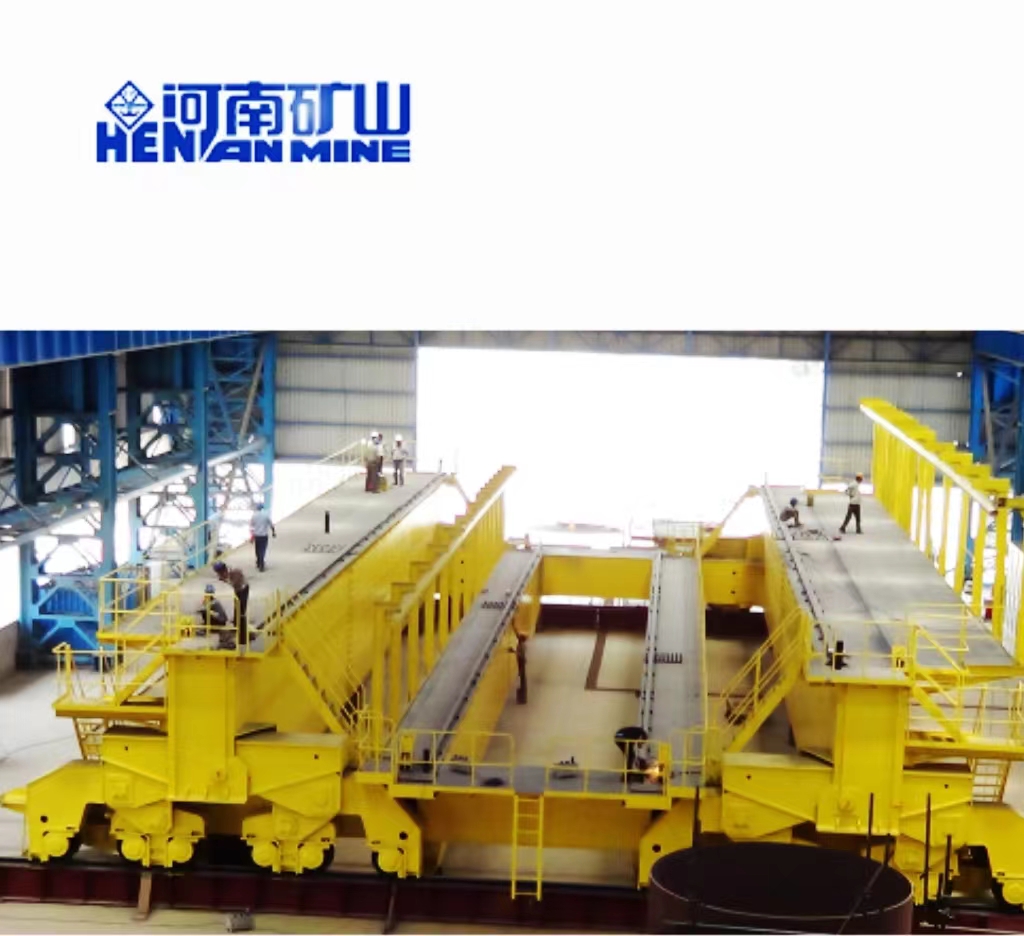

CRANE MAIN COMPONENTS

Main girder

Welded construction;Lower dead weight;
 High degree of vertical and horizontal;
 High rigidity;
 Smaller wheel pressures.

Trolley

Final drive gears are made of heat-treated carbon steel for higher strength; Precision needle roller bearings for high pressure areas provide lower friction levels and longer service life.

Hook

Forged hook;the main and auxiliary hooks cooperate with the work to dump metal liquid, and the hook head is equipped with an
 anti-drop device to prevent the wire rope from falling off.

Motor

YZS series of metallurgy;Insulation class is H;
 Protection grade is IP55;
 Better mechanical strength;
 Total power of the motor to meet the requirements of static power 1.54 times.

Cabin

Open or close or heat preservation;High strength frame;
 The design is made of medium density board and aluminum plastic plate or with thin steel plate riveting;
 All-round view of the interior without dead ends.

Features

Strong material;Corrosion resistance;
 High temperature resistance;
 Higher safety performance;

 Suitable for smelting and foundry workshops

FAQ&CONTACT US

1Q: How can you ensure the quality?

A: Before delivery, every product with quality certification will be tested strictly by QC teams. You are also warmly welcomed to our factory to make the inspections. Meanwhile, also support live factory view & crane inspection.

2Q: What's your delivery period?

A: Within 10/25/40 days after your prepayment received. Exact period should be based on detailed requirements and actual period.

3Q: What's your warranty period?

A: 18 months for cranes accepted.

4Q: Do you have engineer oversea installation service?

A: Yes, we could provide the crane supervision, installation, commissioning & training.

5Q: What kinds of products do you have?

A: All kinds of industrial crane (especially non-standard); Overhead Crane; Gantry Crane, Jib Crane, Wire Rope Hoist; Electric Winch, etc.

6Q: Could we buy spare parts in local once they are out of work?

A: Our main electrical parts brand is SIEMENS or Schneider or S E W brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

7Q: Do you provide lift tools or crane parts? A: Yes, we can provide any kinds of related parts such as hoists, motor, wheels, hang beam, travel beams, enclosed bus bar, lift clamp, grab, magnet , pulley blocks, C hook, wire rope, drum, etc.
